11 Types of Air Conditioners and How to Choose

The Three Letters Broken Down

Each letter has its own family of equipment, its own operating principles, and its own failure modes. Homeowners who understand the distinction ask better questions during service calls.

H — Heating

Heating in North Texas mostly comes down to one of two options: a gas furnace or a heat pump. Older homes often have a gas furnace paired with a separate central AC. Newer homes and conversions increasingly pair a heat pump with an air handler to provide heating and cooling from a single system.

Gas furnaces burn natural gas or propane to produce heat, then distribute it through the ductwork. Efficiency is measured in AFUE, short for Annual Fuel Utilization Efficiency. A furnace rated 95% AFUE converts 95% of its fuel to heat. The other 5% goes up the flue. Older 80% AFUE units waste 20% of every therm. When a gas furnace starts misbehaving, heater repair is usually the first diagnostic step before anyone talks about replacement.

Heat pumps don’t generate heat. They move it. A heat pump extracts warmth from the outdoor air (yes, even when it’s cold out) and pushes it inside. The same machine reverses in summer to pull heat out of the house. According to the U.S. Department of Energy, modern heat pumps can cut home heating electricity use by 50% compared to electric resistance heating.

Texas cold snaps matter here. When temperatures drop below 25°F or so, standard heat pumps struggle and switch to backup electric heat. The February 2021 winter storm reminded everyone in Frisco and the surrounding area why backup capacity matters even in North Texas.

Boilers, radiant floor heat, and geothermal systems exist, too, but they’re rare in residential installations in the DFW area. Most homes have a gas furnace + central AC, a gas furnace + heat pump (dual-fuel), or a heat pump + electric backup. When an existing furnace can’t be saved, heater replacement options are shaped by what fuel source is already at the house. For new construction in growing communities, a clean heater installation during the build phase avoids retrofit headaches down the line.

V — Ventilation

Ventilation is the part of the system most homeowners forget. It’s the air movement, both inside the house and in exchanges with outside air.

Internal circulation happens through the blower motor in the air handler, pushing conditioned air through the supply ducts and pulling stale air back through the returns. Every HVAC system in Texas relies on this loop. When the blower fails, or airflow gets restricted (dirty filter, crushed flex duct, undersized returns), the whole system suffers.

Fresh-air ventilation is separate. Modern Texas homes are tightly sealed for energy efficiency, which traps CO₂, cooking odors, and volatile organic compounds indoors. Energy Recovery Ventilators (ERVs) and Heat Recovery Ventilators (HRVs) pull in outside air while recovering some of the temperature and humidity from the exhausted air. Older homes in places like Denton ventilate naturally through gaps in construction, but newer builds in master-planned communities like Prosper often need mechanical help.

The EPA’s school IAQ program puts the minimum classroom ventilation rate at 15 cubic feet per minute per person (nofollow). Residential targets are lower but follow the same principle. More fresh air usually means better health outcomes and fewer headaches.

AC — Air Conditioning

Air conditioning removes heat and humidity from indoor air using the refrigeration cycle. Refrigerant (until recently R-410A, now R-454B for new installs) absorbs heat from the indoor coil, carries it outside to the condenser, and releases it to the atmosphere. The compressor is the pump that drives the cycle.

Central air splits the system into two. An outdoor condenser and an indoor coil are mounted inside or on top of the air handler. Refrigerant lines connect them. A ductless mini-split does the same job, with an indoor head mounted high on a wall rather than a coil in a central air handler. Good for garages, sunrooms, and additions.

In Texas, the AC side of the system works 8 to 9 months a year. It’s the half of the HVAC system that breaks down most often, because it runs the most. DFW cooling loads from June through September can exceed design capacity on 100°F+ days, and any weakness in the system shows up fast. For homes in Allen, McKinney, and The Colony, this is why air conditioning repair calls spike every July.

HVAC System Components Inside a Texas Home

A complete residential HVAC system in North Texas typically includes 8 to 12 distinct components working together. Here’s what’s actually in most homes.

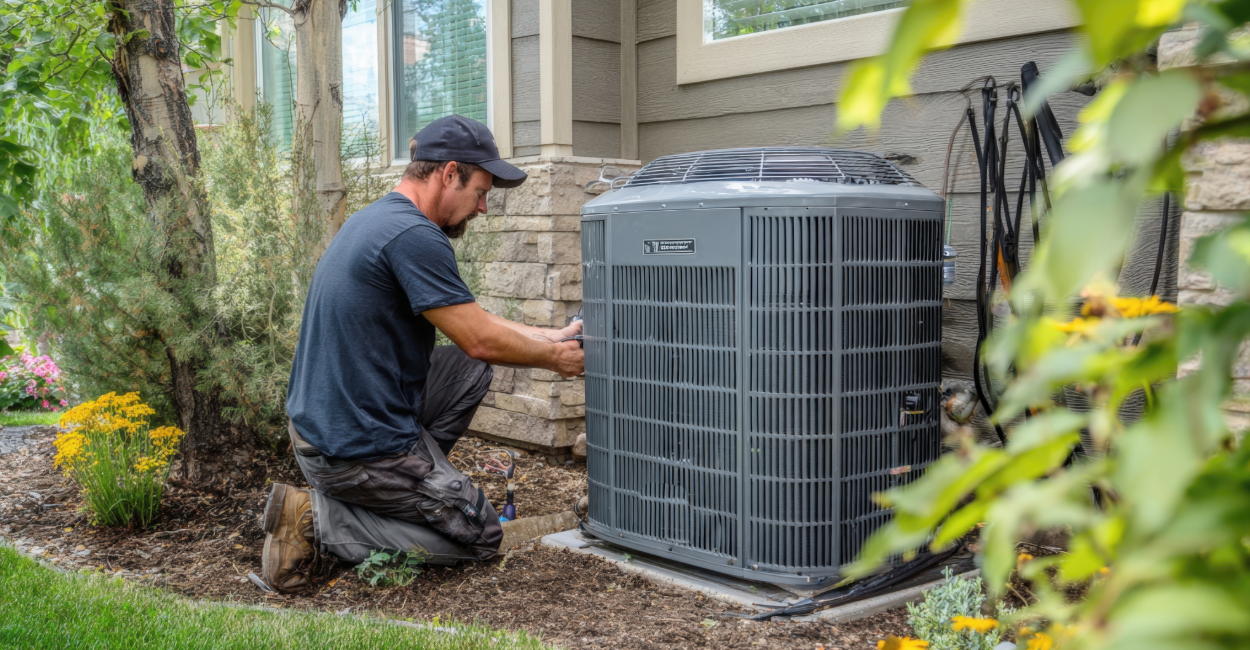

Outdoor condenser unit. The big metal box is sitting on a concrete pad next to the house. Contains the compressor, condenser coil, and fan motor. This is where heat gets rejected to the outside air. In attic-heavy Texas installs, this is usually mounted on a ground-level slab.

Indoor air handler or furnace. The indoor half of the split system. Contains the evaporator coil (where refrigerant absorbs heat from indoor air), the blower motor, and the filter slot. In homes with gas heat, a gas furnace sits in this position. In homes with heat pumps, it’s an air handler. In attic installs, it’s usually horizontally mounted above the ceiling.

Evaporator coil. Paired with the air handler or furnace. This is where the refrigerant cycle absorbs heat from indoor air. A dirty or iced-over evaporator coil is the #1 cause of “my AC is running, but the house isn’t cooling.”

Ductwork. The network of sheet metal and flex duct that distributes conditioned air through the home. Poor ductwork design can waste 20-30% of cooling capacity before the air even leaves the attic. Undersized returns, leaky joints, and crushed flex duct are chronic problems in older homes across Lewisville and Carrollton, where builder-grade ductwork has outlived its reasonable lifespan.

Vents and registers. Supply registers deliver cool air to rooms. Return grilles pull stale air back to the air handler. Most homes have one central return plus supply registers in every room. Modern code increasingly requires returns in every bedroom for balanced airflow.

Thermostat. The brain. Programs the system, signals when to start and stop, and increasingly controls humidity and zone dampers. Modern smart thermostats (Ecobee, Nest, Honeywell’s Lyric) add learning schedules, remote control, and sometimes direct integration with the dealer for remote diagnostics.

Refrigerant lines. Two copper tubes run between the outdoor condenser and the indoor coil. The larger insulated line carries cool vapor back to the compressor. The smaller bare line carries warm liquid refrigerant to the evaporator.

Air filter. Usually, a 1-inch pleated filter in the return grille or filter slot at the air handler. Better setups use 4-5 inch media filter cabinets rated MERV 11 to 13. Air filters in Texas homes need changing every 1 to 3 months, depending on pet count, seasonal pollen, and system runtime.

Electrical components. Capacitors, contactors, relays, transformers, and circuit boards. Small parts that fail often. A failed capacitor ($20 part) can disable an entire outdoor unit. Texas summer heat accelerates capacitor failure, which is why routine AC service usually includes testing them before summer hits.

Drain the pan and condensate line. The evaporator coil draws moisture from the air, which drains off as water. Clogged drain lines cause ceiling leaks in attic installs. One of the most common service calls in Texas is during the summer.

Safety devices. Float switches, high-pressure cutouts, temperature limits, flame sensors on gas furnaces. These shut the system down before damage spreads. Most “won’t turn on” calls trace back to a tripped safety that did its job.

Optional indoor air quality equipment. Whole-house dehumidifiers, UV lights, media air cleaners, ERVs. Not standard but increasingly common in new construction or during major system upgrades.

Types of HVAC Systems for Texas Homes

Not every home gets the same system. What works in a two-story new construction in Celina won’t fit a 1960s ranch in Dallas. Here’s what gets installed in North Texas, and when each option makes sense.

Central split system. The most common residential setup. Outdoor condenser + indoor air handler or furnace + ductwork throughout the house. Works for every house size. Best overall efficiency when ducts are properly sized and sealed. Most residential HVAC installs in the DFW area follow this pattern.

Heat pump split system. Same layout, but the outdoor unit heats and cools. No natural gas required. Becoming standard in newer construction because it qualifies for federal tax incentives and runs entirely on electricity. Works well in the North Texas climate with auxiliary electric strip heat for cold snaps.

Dual-fuel (hybrid) system. Heat pump outdoor unit paired with a gas furnace indoor unit. The heat pump runs until outdoor temps drop into the 30s, then the furnace takes over. Best-of-both-worlds for homeowners who want electric efficiency most of the year, plus reliable gas heat during freezes. More expensive upfront, but often the most economical over a 15-year life.

Packaged system. All components in one cabinet mounted outside. Less common in residential. Mostly seen on manufactured homes, some slab-foundation homes without attic space, and light commercial HVAC jobs. Easier to service but less efficient than a split system.

Ductless mini-split. One outdoor unit, one or more indoor heads mounted high on interior walls. No ductwork. Perfect for garages, room additions, sunrooms, converted attics, or older homes that never had ducts. Multi-zone mini-splits can support up to 8 indoor heads from a single outdoor unit, each with its own thermostat. Installation is usually faster and less invasive than adding ductwork to an existing house.

Geothermal heat pump. Uses the stability of underground temperatures to heat and cool. Extremely efficient but expensive to install. Requires yard space for the ground loop. Rare in Texas residential areas because the upfront cost (often $20,000+) takes years to recoup at DFW electric rates.

The right choice depends on home size, existing infrastructure, climate, budget, and energy priorities. Air Zone Experts runs a Manual J load calculation before recommending a specific system type. Rules of thumb (e.g., one ton per 500 square feet) lead to oversized systems that short-cycle, waste energy, and don’t dehumidify properly.

How an HVAC System Actually Works

The full cycle of a Texas home’s cooling system, start to finish, on a typical July afternoon:

The thermostat senses indoor temperature above setpoint (say, 78°F when set to 76°F). It completes a circuit that supplies 24 volts to the outdoor condenser unit and the indoor blower motor.

At the outdoor condenser, the contactor closes and sends 240 volts to the compressor and condenser fan. The compressor starts pressurizing the refrigerant vapor. The fan pulls outdoor air across the condenser coil.

Pressurized refrigerant (now hot from compression) flows through the condenser coil. As outside air moves across the coil, heat transfers from the refrigerant to the air. Refrigerant condenses from gas to liquid. The hot air blows out the top of the unit. That’s why the outdoor air above a running AC feels like a hair dryer.

Liquid refrigerant travels through the small copper line into the house and to the evaporator coil inside the air handler.

At the evaporator, the refrigerant passes through a metering device (either a thermal expansion valve or a fixed orifice) that sharply reduces its pressure. The refrigerant flashes from warm liquid to cold vapor. The coil becomes cold.

The indoor blower pulls warm house air through the return grilles, through the filter, and across the cold evaporator coil. Heat from the house air transfers into the refrigerant. Moisture in the house air condenses on the cold coil and drips into the drain pan.

Cool, dehumidified air exits the air handler into the supply ducts and out through the registers in each room.

Warmed refrigerant vapor flows back outside through the large insulated copper line to the compressor, where the cycle starts over.

This happens continuously while the thermostat calls for cooling. When the indoor temperature reaches the setpoint, the thermostat opens the circuit, the contactor releases, and the system shuts down until the next call.

Heating works the same way in reverse for heat pumps. A reversing valve flips the refrigerant flow so the outdoor coil becomes the evaporator (absorbing heat from outside air) and the indoor coil becomes the condenser (releasing heat inside).

Gas furnace heating is simpler. Thermostat calls for heat; furnace fires its burners; heat exchanger warms up; blower pushes air across the heat exchanger and out through the supply ducts. Flue gases vent outside through a dedicated pipe.

Efficiency Ratings Explained: SEER2, AFUE, HSPF2

HVAC equipment carries efficiency ratings the same way cars carry MPG ratings. Knowing which number matters in Texas can save thousands over a system’s life.

SEER2 — Seasonal Energy Efficiency Ratio 2. Measures cooling efficiency for air conditioners and heat pumps. Replaced the old SEER rating in 2023. Higher is better. Testing uses 0.5 inches of external static pressure, up from the previous 0.1 inches, reflecting real-world ductwork conditions. A unit rated SEER 16 under the old system rates about SEER2 15.2 under the new one.

Texas sits in the DOE’s Southeast region, which means the 2026 federal minimum for new split-system AC under 45,000 BTU is SEER2 14.3. Anything less cannot legally be installed. Units over 45,000 BTU have a slightly lower minimum at SEER2 13.8. Heat pumps nationwide must hit SEER2 14.3 regardless of region.

Most homeowners in North Texas should aim for SEER2 15.2 or higher. The step up from minimum to mid-tier often pays back in energy savings within 3 to 5 years, given how much the AC runs here. When it’s time for a full system swap, air conditioning replacement decisions should start with the SEER2 target.

AFUE — Annual Fuel Utilization Efficiency. Measures gas furnace efficiency. Expressed as a percentage. 80% AFUE means 80% of the fuel energy is converted to heat; 20% escapes up the flue. 95% AFUE units recover more heat through a secondary heat exchanger and condensing process.

In North Texas, where furnaces run maybe 60-90 days a year, the upgrade from 80% to 95% AFUE pays back more slowly than in Chicago. Still usually worth it for new installs, especially when paired with tax credits.

HSPF2 — Heating Seasonal Performance Factor 2. Measures heat pump heating efficiency. Federal minimum is 7.5 HSPF2 (equivalent to about 8.8 HSPF under the old system). Most quality heat pumps run 8.1 to 10+ HSPF2.

HSPF2 matters less in North Texas than in Oklahoma or Kansas because the heating season is short. But during February cold snaps, it’s the difference between a $300 and a $500 electric bill.

EER2 — Energy Efficiency Ratio 2. Measures cooling efficiency at one specific condition (95°F outdoor). Less useful than SEER2 for annual costs but more relevant in extreme Texas heat. Look at EER2 when shopping for a system that’ll see lots of 100°F+ days.

ENERGY STAR certification. The ENERGY STAR program is a DOE-EPA partnership that certifies equipment meeting criteria above federal minimums. Most qualify for utility rebates and (historically) federal tax credits. ENERGY STAR-certified split-system ACs typically require SEER2 15.2 or higher.

Note: the federal 25C tax credit for HVAC expired December 31, 2025. Any credit claims need to predate that date. Some Texas utility rebates still apply — Oncor and CoServ both have active residential HVAC rebate programs as of early 2026. Air Zone Experts can help homeowners figure out what’s still available.

What HVAC Costs in North Texas

Pricing varies with home size, ductwork condition, and efficiency tier. These ranges reflect actual 2026 North Texas installed pricing for typical 3-5 ton residential systems.

Full system replacement (AC + furnace + coil): $8,000 to $15,000. Entry-level 14.3 SEER2 packages start around $8,500 installed for a basic 3-ton system. Mid-tier 16+ SEER2 systems with variable-speed blower run $11,000 to $13,000. Premium 18+ SEER2 systems with communicating controls can exceed $18,000 for larger homes.

AC-only replacement (outdoor condenser + indoor coil, keeping existing furnace): $6,500 to $11,000. Rare in practice. Most homeowners replace both at once because the coil and condenser must match.

Heat pump replacement: $9,500 to $16,000. Slightly more than straight AC because the outdoor unit contains more components. Often qualifies for utility rebates that narrow the upfront cost gap.

Furnace replacement: $3,500 to $6,500 for an 80% AFUE model. $5,000 to $9,000 for 95% AFUE. The higher-efficiency unit also requires a specific vent pipe (PVC or polypropylene), which can add installation cost if existing venting can’t be reused.

New construction install or complete system swap: $8,000 to $20,000. Running ductwork from scratch during a rebuild, major addition, or ground-up project is a different animal than a drop-in replacement. This is where air conditioning installation costs shift based on layout, tonnage, and zoning complexity.

Ductless mini-split (single zone): $3,500 to $6,500 for one outdoor + one indoor head. Multi-zone systems range from $8,000 to $18,000, depending on headcount.

Ductwork replacement or significant modification: $3,000 to $10,000. Usually only done during a full system replacement because reopening ceilings is invasive.

Annual maintenance tune-up: $100 to $200 per visit. Most maintenance plans run $180 to $300 per year for two visits (spring AC, fall furnace).

Emergency repair visits: $150 to $300 diagnostic fee + parts + labor. When a system dies at 3 a.m. on a 105°F Saturday, emergency HVAC services carry premium labor rates. Common repairs:

• Capacitor replacement: $150 to $350 total
• Contactor replacement: $175 to $400
• Blower motor: $400 to $900
• Evaporator coil replacement: $1,200 to $3,500
• Compressor replacement: $1,500 to $3,500 (often a sign to replace the whole outdoor unit)
• Heat exchanger (gas furnace): $1,200 to $2,500 (often signals whole-furnace replacement)

Key honest-pricing note: Separate labor from equipment on every quote. A quote that says “$11,500 for a new system” without breaking out what’s in the box and what’s in the hands doing the work is hiding something. Air Zone Experts quotes items separately: equipment, refrigerant, copper line set (if new), electrical work, condensate disposal, permits, and labor hours.

How Texas Climate Changes What HVAC Really Means

This section doesn’t exist on Trane’s website. Or Carrier’s. Or Lennox’s. Because their job is to sell equipment nationwide, not to explain what it takes to cool a house in Aubrey during a stretch of 107°F days when attic temperatures hit 140°F and a 3-ton unit barely keeps up.

Here’s what actually matters in North Texas.

Cooling dominates by a huge margin. Texas is a cooling-dominant climate. Studies estimate the annual HVAC energy split in DFW at roughly 70-80% cooling and 20-30% heating. In practical terms, that means SEER2 should drive equipment choices more than AFUE or HSPF2. A system with a SEER2 of 18 and modest heating will outperform a high-AFUE furnace paired with a SEER2 of 14.3 AC here every time over a 15-year life.

Humidity is relentless. North Texas isn’t Houston, but June through September still regularly push outdoor humidity past 70%. A properly sized AC doesn’t just cool, it dehumidifies. Oversized units (the chronic mistake of rule-of-thumb installers) cool the air fast but don’t run long enough to pull moisture out. Result: a cold, clammy house that feels 78°F even when the thermostat reads 72°F. Right-sized equipment, variable-speed blowers, and sometimes a whole-house dehumidifier address this.

Attic installs dominate. Most single-story and many two-story homes across the area have the air handler or furnace in the attic. Attic temperatures above insulation can hit 140°F in July. That environment makes systems work harder, fail sooner, and demands properly insulated ductwork plus radiant barriers to keep losses reasonable.

Ductwork is usually the weakest link. Builders install minimum-viable ductwork to pass inspection. The flex duct gets crushed during construction. Returns are often undersized. Supply runs leak at every joint. On service calls in older neighborhoods in Addison, Coppell, and Richardson, it’s common to find 20-30% of rated cooling capacity lost before air ever reaches a room. A brand-new SEER2 18 system connected to bad ductwork performs like a SEER2 12 system.

Cold snaps happen. The February 2021 winter storm reminded North Texas that temperatures as low as 5°F are possible. Standard heat pumps handle DFW’s normal winter just fine, but during deep freezes, they fall back on electric strip heat, which drives electric bills through the roof. Dual-fuel systems (heat pump + gas furnace) avoid this, which is why they’ve become the default recommendation for new installs where gas is available.

Cedar fever season is real. Central Texas cedar pollen peaks from December through February. North Texas allergy seasons run longer due to mixed tree and grass pollens. A MERV 11 or 13 filter + proper return placement + annual duct cleaning can cut indoor allergen loads by 50% or more. Homeowners with asthma or severe allergies often benefit from a whole-house air cleaner paired with the standard filter.

Power events matter. Texas grid stress during extreme heat can trigger brownouts or hard cutoffs. Modern HVAC systems handle this poorly. Proper surge protection at the outdoor unit (often overlooked) prevents compressor damage during voltage swings. A good installer includes this in every new install.

None of this is theoretical. It’s the everyday context of doing HVAC work in North DFW. Systems that ignore it fail early. Systems designed with it in mind have lasted for 15 to 20 years.

How to Choose an Honest HVAC Contractor

This is the section homeowners actually need. Most guides skip it because the manufacturer sites that rank for “what is HVAC” can’t tell readers how to avoid getting upsold by their own dealer network.

Air Zone Experts has no such conflict. Here’s the honest version.

Ask for their license number up front. Every HVAC contractor in Texas must be licensed through the Texas Department of Licensing and Regulation. Legit companies display the number in their advertising, on their trucks, and in their quotes. If it’s hard to find, there’s a reason.

Ask about NATE certification. NATE (North American Technician Excellence) is the industry’s highest credential for technicians. NATE-certified technicians have passed rigorous exams on system design, service, installation, and troubleshooting. Certification isn’t required by law, but it’s a strong signal of expertise. If no one on the team is NATE-certified, ask why.

Ask if the owner does service calls. Owner-operated companies where the owner actually shows up to jobs tend to have better accountability than multi-truck operations where the tech has never met the owner. Air Zone Experts is owner-operated. Adrian Racovei is on most service calls.

Insist on a Manual J load calculation for replacements. If someone quotes a new system based on square footage alone (“the rule of thumb is one ton per 500 square feet”), they’re guessing. Manual J is the ACCA standard for calculating actual heating and cooling loads based on windows, insulation, orientation, and regional climate data. Oversized systems cost more, dehumidify worse, and wear out faster.

Check written quotes for itemization. Separate lines for equipment, labor, permits, and ancillary materials. A quote that lumps everything into a single number leaves room for upselling or corner-cutting. Honest quotes show the actual cost breakdown.

Ask about permits. Texas requires permits for HVAC replacements in most jurisdictions. Some installers skip permits to save time and cost. This means no city inspection, no code verification, and potential problems at resale. Every legitimate install pulls permits.

Red flags that signal an upseller:

• “Your system is on its last legs” on a first service call without diagnostic proof
• Quotes that expire within 48 hours to pressure the decision
• Refusing to show the failed part or data supporting a diagnosis
• “Special today only” pricing on equipment that doesn’t exist at that price 72 hours later
• Recommending a replacement when the repair is under 25% of the replacement cost on a system under 10 years old
• Refusing to quote the brand the homeowner asks about in favor of their preferred manufacturer

Fair-practice signals:

• Diagnosis first, recommendation second, quote third
• Willingness to repair over replace when repair is economically sound
• References from recent customers available on request
• Transparent about what’s covered under the manufacturer’s warranty versus the labor warranty
• No pressure on older systems that have years of life left

The Texas HVAC market has thousands of contractors. Most are competent. The upsellers are loud and spend heavily on marketing, which is why they show up first in search results. Homeowners who ask the questions above tend to find the operators who survive on repeat customers and referrals, not on ad spend.

Why HVAC Certifications Matter

HVAC certifications exist because the work is dangerous, regulated, and technical. The three that matter most in Texas:

NATE certification. North American Technician Excellence. Industry credential, not government-required. Covers installation, service, maintenance, and specific equipment categories (air conditioning, gas heating, heat pumps, commercial refrigeration). Certification doesn’t expire, but recertification tests cover evolving technology and best practices. The field has an estimated 30% NATE certification rate among practicing technicians. Adrian Racovei holds NATE HVACR certification. That’s the top-tier credential for residential and light-commercial HVAC service.

EPA Section 608 certification. Federal requirement under the Clean Air Act. Any technician who installs, services, or disposes of equipment containing refrigerant must hold Section 608 certification (nofollow). Four types: Type I (small appliances), Type II (high-pressure systems — most residential AC and heat pumps), Type III (low-pressure commercial chillers), and Universal (all three). Violations carry federal penalties up to $10,000 per day per violation. Legitimate Texas HVAC companies maintain Section 608 Universal certification for all their techs.

TDLR Air Conditioning and Refrigeration Contractor License. Texas-specific requirement. Administered by the Texas Department of Licensing and Regulation. Three license classes: Class A (unlimited capacity), Class B (up to 25 tons cooling or 1.5 million BTU heating), and residential-only. Every advertisement, quote, and service truck must display the TDLR license number. Customers can verify license status on the TDLR website.

Other useful credentials:

• ACCA Quality Installation (QI) certification for installers who follow Manual J, D, and S protocols
• Trane Certified Dealer or Lennox Premier Dealer status, indicating manufacturer-specific training
• Better Business Bureau accreditation (secondary signal, not a credential)

A technician’s certifications don’t guarantee they’re honest. An uncertified technician can still do excellent work. But certifications give homeowners objective criteria to evaluate competence, and when combined with reviews, plus how the person actually acts during service calls, they help narrow the field quickly.

Service Area: North DFW Communities Air Zone Experts Covers

HVAC service isn’t just about equipment expertise. It’s about local response time, understanding neighborhood-level quirks (older homes in Sachse need different ductwork approaches than new builds in Savannah), and being close enough to actually show up same-day during summer.

Air Zone Experts serves communities across Denton, Collin, and Dallas counties. Wylie on the east side. Crossroads and Hackberry up north. Oak Point, Lake Dallas, and Corinth are along the lake. Krugerville for homeowners in Denton County’s growing corridor. Each community has its own mix of home age, builder stock, and climate exposure that shapes what service looks like in practice.

Lake-adjacent homes deal with higher humidity and more condensate drain issues. Older homes carry undersized returns and aged ductwork. New construction often has builder-grade equipment that outlives its warranty by three weeks and fails by the fourth summer. Knowing the neighborhood means anticipating the likely cause before ever pulling into the driveway.

Frequently Asked Questions About HVAC

HVAC Basics and Terminology

What does HVAC stand for?

HVAC stands for heating, ventilation, and air conditioning. It refers to the combined system of equipment that controls indoor temperature, humidity, and airflow in a home or building. In Texas residential settings, HVAC typically refers to a central AC or heat pump paired with a gas furnace or air handler, with connected ductwork.

Is HVAC the same as AC?

No. AC is one part of HVAC. Air conditioning specifically refers to cooling and dehumidification. HVAC includes both the heating side (furnace, heat pump, boiler) and the ventilation side (ductwork, fresh-air intake, filtration). Every AC is part of an HVAC system, but not every HVAC system is limited to AC.

What’s the difference between a heat pump and an AC?

An AC only cools. A heat pump both cools and heats using the same refrigeration cycle, just running in reverse for heating. Mechanically, a heat pump is an AC with a reversing valve and some additional controls. Heat pumps cost slightly more upfront but replace the need for a separate furnace in mild-winter climates.

How long does an HVAC system last in Texas?

Properly installed and maintained systems typically last 12 to 18 years in North Texas. AC systems and heat pumps tend toward the lower end of that range because they run 8 to 9 months a year. Gas furnaces, which run only 2 to 3 months per year, often last 18 to 25 years. Neglected systems die much sooner. The #1 killer of Texas HVAC equipment is skipped annual maintenance.

What does SEER2 actually measure?

SEER2 (Seasonal Energy Efficiency Ratio 2) measures the average cooling efficiency of an AC or heat pump across a range of operating conditions. Higher numbers mean lower electric bills per unit of cooling. A SEER2 of 18 uses roughly 20% less electricity than a SEER2 14.3 unit to produce the same cooling. SEER2 replaced the old SEER rating in 2023 with more realistic testing conditions.

Buying and Installing HVAC

What size HVAC system does my home need?

There’s no rule of thumb that works reliably. Proper sizing requires a Manual J load calculation that accounts for square footage, ceiling height, insulation levels, window quantity and orientation, number of occupants, and local climate data. In North Texas, typical homes need 1 ton of AC capacity per 500 to 700 square feet, but actual loads vary by 30% or more based on insulation and shading. Insist on Manual J before accepting any replacement quote.

How much does a new HVAC system cost in Texas in 2026?

Full replacement (AC + furnace + coil) costs $8,000 to $15,000 installed for typical 3 to 5-ton residential systems. Heat pump systems run $9,500 to $16,000. Premium high-efficiency systems with communicating controls and variable-speed components can exceed $18,000 for larger homes. Financing is commonly available through 3 to 10-year terms.

Should I repair or replace my old HVAC?

The $5,000 rule offers a starting framework: multiply the system’s age in years by the repair cost. If the product exceeds $5,000, lean toward replacement. Also consider efficiency tier (old R-22 systems should be replaced), repair frequency (a system needing 2+ significant repairs in 3 years signals end of life), and comfort (if rooms have never cooled properly, replacement often solves airflow issues that repairs can’t).

What’s the best HVAC brand for Texas?

Trane, Carrier, Lennox, American Standard, and Bryant all make reliable residential equipment. Trane has strong build quality and wide North Texas dealer support, which is why Air Zone Experts recommends it as an authorized Trane dealer. That said, the installer matters more than the brand. A great installer with a mid-tier brand outperforms a bad installer with a premium brand every time.

How long does HVAC installation take?

A standard system replacement in an existing home takes 1 to 2 days. Add another day if ductwork needs significant modification. New construction installations typically take 2 to 4 days, depending on the home’s size. Emergency summer replacements sometimes take only 1 day if the installer can move quickly and the homeowner accepts a standard configuration.

Maintenance and Operation

How often should HVAC maintenance happen?

Twice a year — once in spring for the AC side, once in fall for the heating side. Each visit takes 45 to 90 minutes and covers filter inspection, coil cleaning, refrigerant check, electrical testing, drain line flush, and thermostat calibration. Most reputable Texas companies offer maintenance plans running $180 to $300 annually for both visits.

How often should I change my air filter in Texas?

Every 1 to 3 months for 1-inch filters. Every 6 to 12 months for 4-5 inch media filters. Homes with pets, smokers, or residents with allergies need more frequent changes. During heavy pollen seasons (spring and fall in North Texas), check filters monthly. A dirty filter restricts airflow, forces the system to work harder, and can freeze the evaporator coil during cooling.

What temperature should I set my thermostat to in Texas summer?

Most comfort and efficiency studies recommend 76°F to 78°F during summer days. Programmable or smart thermostats that raise the setpoint by 4 to 6 degrees during unoccupied hours significantly reduce cooling costs. The old myth about setting the thermostat lower to “cool faster” doesn’t work. The AC runs at one speed regardless of the setpoint difference. It just runs longer.

Why is my electric bill so high, even with the new HVAC?

Common causes: duct leakage (air cooled in the attic never reaches rooms), oversized system (short-cycling without proper dehumidification forcing longer runtimes), undersized returns (airflow restriction causing inefficient operation), thermostat placement (direct sunlight or hot wall gives false readings), or refrigerant leak (low charge means poor heat transfer). Any of these can double a normal bill. Annual maintenance catches most of them.

Does closing vents in unused rooms save energy?

No. Closed vents increase static pressure on the blower motor, which wastes energy and can damage the system. Modern HVAC systems are designed around total airflow. Closing 20% of the registers forces the same air through fewer outlets, making the remaining rooms too cold and the system work harder. True room-level control requires zoning with motorized dampers and a zone control board.

Texas-Specific and Safety Questions

What’s the best HVAC for humid North Texas?

Look for variable-speed blower motors (usually marketed as “communicating systems”). These blowers run at low speeds for extended periods, dramatically improving dehumidification compared to single-speed blowers that cycle on and off. Variable-speed compressors add another level of humidity control. Some North Texas homes also benefit from a whole-house dehumidifier tied into the ductwork, particularly homes with high window area or significant shaded square footage.

Should I worry about R-410A being phased out?

Not immediately, but plan ahead. R-410A production for new systems ended January 1, 2025. New installs in 2026 use R-454B or R-32. Existing R-410A systems will continue to run as long as they remain charged. Service refrigerant for R-410A is still available, but it gets more expensive every year. If a system over 10 years old needs significant refrigerant work, replacement is usually the better call.

Can I run my HVAC during a Texas cold snap?

Yes, but be aware of limits. Heat pumps struggle at temperatures below 25°F and fall back on electric resistance heat, which sharply raises bills. Gas furnaces work fine down to any temperature as long as the flue stays clear and the intake isn’t blocked by snow or ice. Homes with only electric heat should plan for extremely high bills during sustained cold. Maintaining a 65°F indoor minimum during freezes helps protect pipes without maxing out the heating system.

What are the signs of carbon monoxide from a furnace?

Physical symptoms in occupants: headaches, dizziness, nausea, drowsiness, and confusion. These appear before any visible sign at the furnace. Any CO detector alarm requires immediate action. Get everyone out of the house, call 911, and do not restart the furnace until a certified technician verifies the heat exchanger is intact. Gas furnaces should have their heat exchangers inspected annually. Every home with gas appliances needs working CO detectors on every level, and ideally outside every sleeping area.

How can I tell if my HVAC needs replacement vs. repair?

Key indicators for replacement: system age over 12 years, repair cost exceeding 30-40% of replacement cost, R-22 refrigerant, frequent recent repairs (2+ in the last 3 years), rising electric bills despite normal use, and uneven cooling that worsens over time. Repair usually makes sense for one-off component failures on systems under 10 years old with good service history. When in doubt, get a second opinion. Honest contractors will often recommend repair even when competitors are pushing replacement.

Ready to Get Started with Heating, Ventilation, and Air Conditioning?

Air Zone Experts is a NATE-certified, owner-operated HVAC company serving Little Elm, Frisco, and the North DFW area. Whether the question is about repair, replacement, maintenance, or a full new install, Adrian and the team give straight answers without upselling. Schedule an HVAC service call today or request a free replacement estimate from Air Zone Experts.
